PWM Static Voltage Conditioners

E-Cube Energy in partnership with TSI Power Pvt. Ltd. brings to its customers the most advanced voltage conditioning equipment for applications where stable input power is a mandatory requirement.

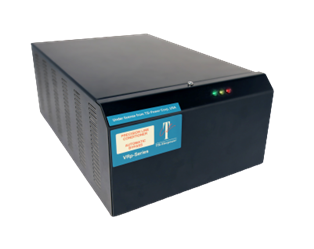

These Static Voltage Regulators with Precision (VRP) are plug & play type, easy to install and are light in weight. They are available for both indoor installation as well as outdoor installation.

Product Features

  • The TSi-VRP system providesreal-timecontrol of Sag, Swell, Noise, Spike and Transients within 20 milliseconds
  • In-built Spike and Noise Control Filters
  • Since the VRP does not switch components in the power path, it is compatible with most loads including regenerative loads
  • AC input circuit breakers prevent costly equipment damage due to load side faults.
  • Automatic Bypass for Regulator Engine assures fail safe operation
  • Light weight & Compact size makes for ease of installation
  • Static technology results in quiet operation, high product up-time & low maintenance
  • High efficiency and energy savings through optimum voltage result in energy efficient operation
  • Tight control over electronic card failures, data corruption and machine breakdownsresult in higher productivity, lower operating costs, and greater consumer comfort

Application Areas

  • CNC & Robotics
  • Auto & Auto-ancillary
  • Textile Spinning, Processing, Knitting & Weaving
  • Engineering & Process Industry
  • Wood Peeling
  • Oil & Gas
  • Radar & Telecommunication
  • R & D, Testing&Diagnostics
  • Plastic Processing
  • Printing & Packaging
  • Security and Surveillance
  • Defence& Aerospace
  • Ceramic Industry
  • Building Management and other hi-tech applications

TECHNICAL SPECIFICATIONS

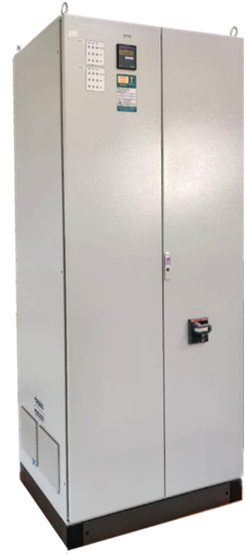

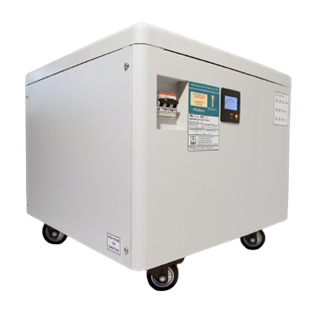

Configurations Single Phase and Three Phase Configurations
Rated Capacity Single Phase - 1 KVA to 100 KVA
Three Phase - 3 KVA to 300 KVA
Regulator Engine High frequency 20 Khz IGBT driven voltage regulation convertor
Nominal Input Voltage 415 VAC (can be pre-set at any value between 380-415VAC)
Input Voltage Fluctuation +/- 13%, +/- 20% and +/- 26%
Typical Output Voltage regulation +/- 1%
Power efficiency >97%
Indications LED display for Regulation mode, Bypass mode & Fault conditions
Metering Digital Ammeter and Voltmeter with Selector Switch as a standard option.
Power Analyers with RS-485 port as an option.
Further Details For more details please visit the TSI website at

www.tsipower.in

RELATED PRODUCTS

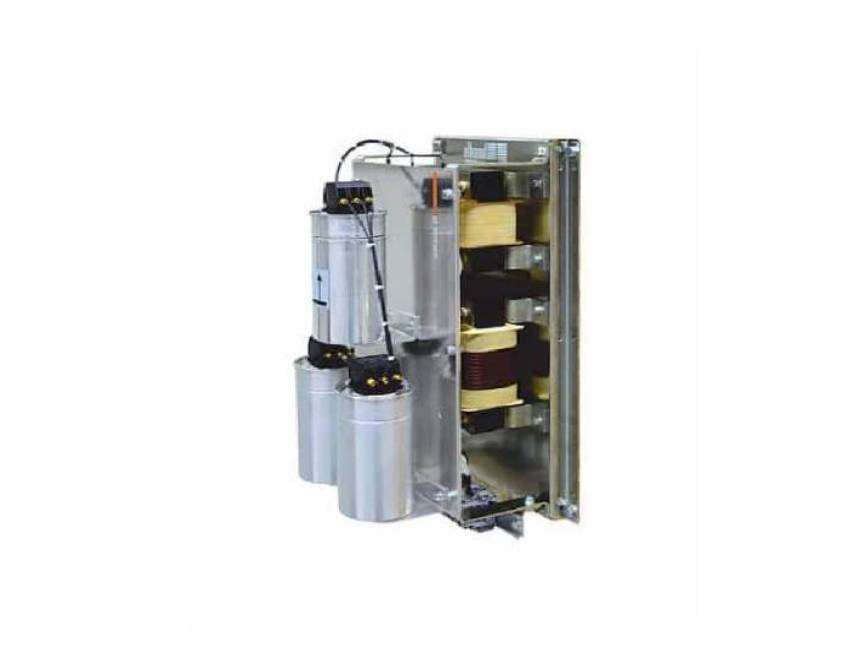

Real Time Power Factor Correction(RTPFC) Panel

Real Time Power Factor

Learn More
Passive Harmonic Filters

Passive Harmonic Filters

Learn More

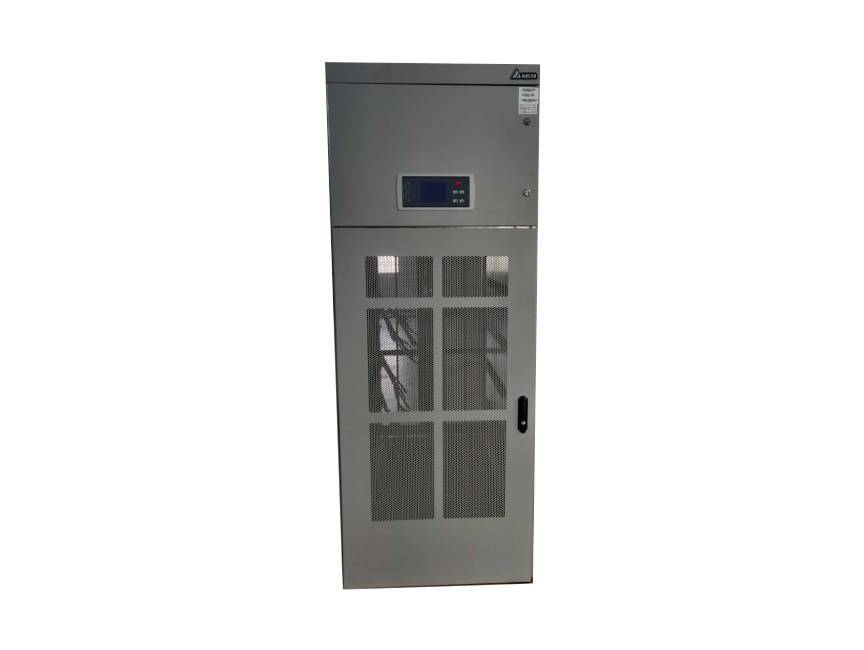

Active Harmonic Filters

Active Harmonic Filters

Learn More

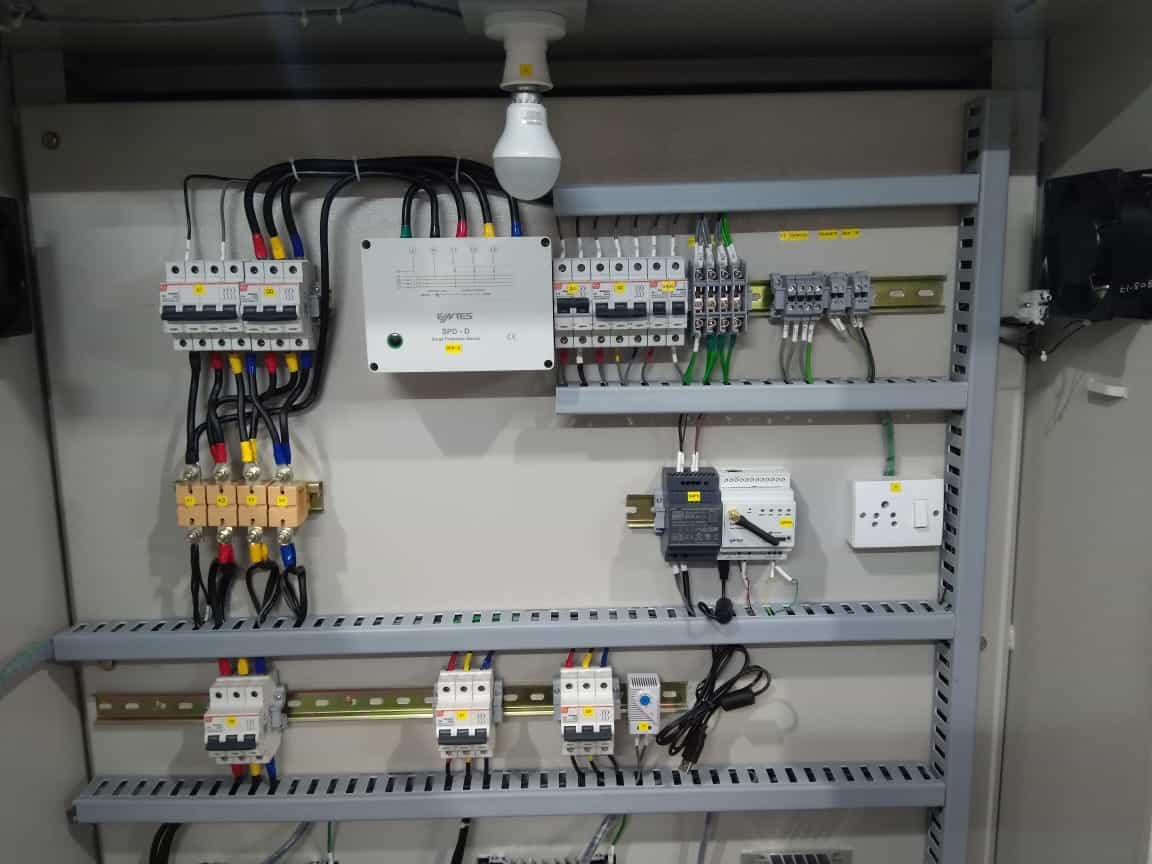

Satic VAR Generator(SVG) - Stepless PF correction from BITCON E-Cube Energy
