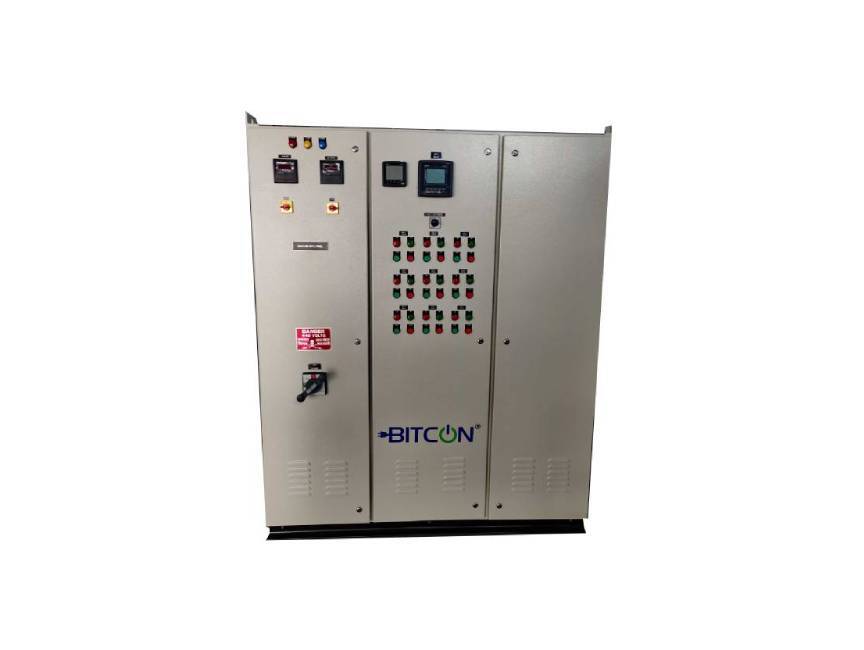

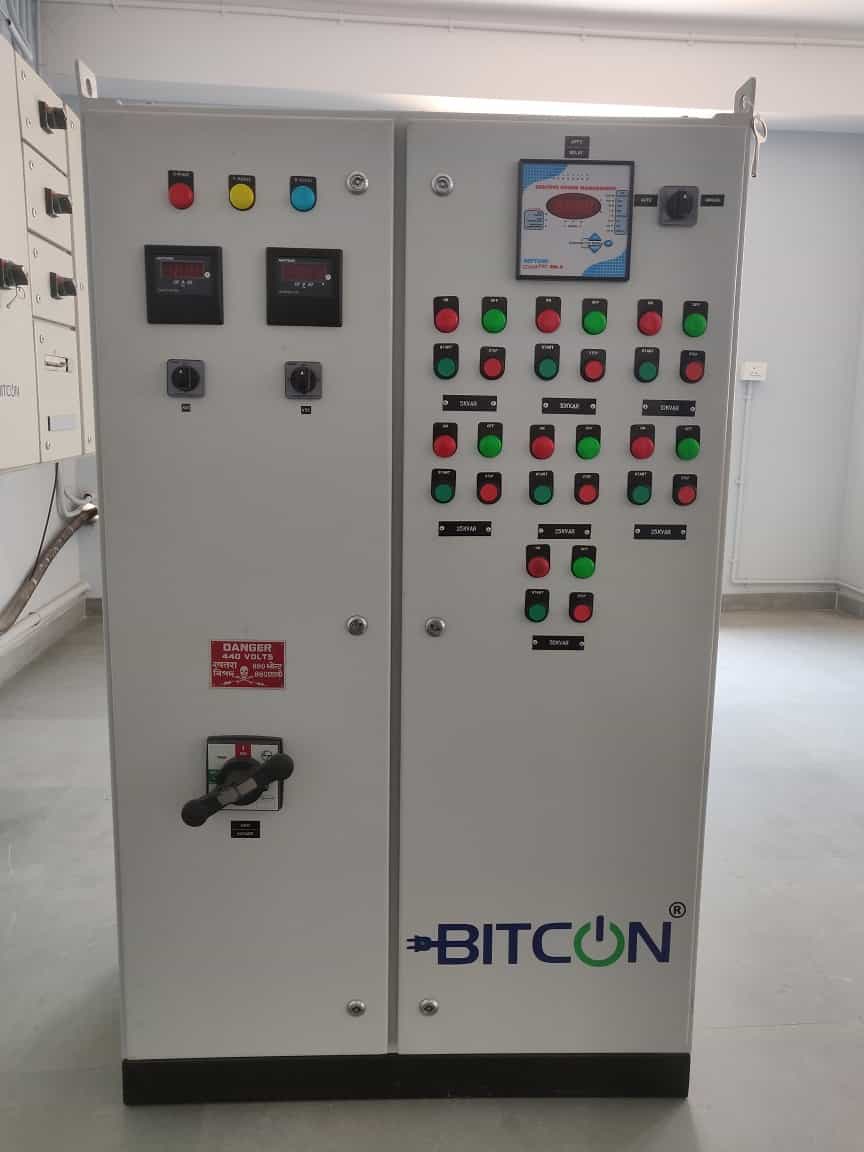

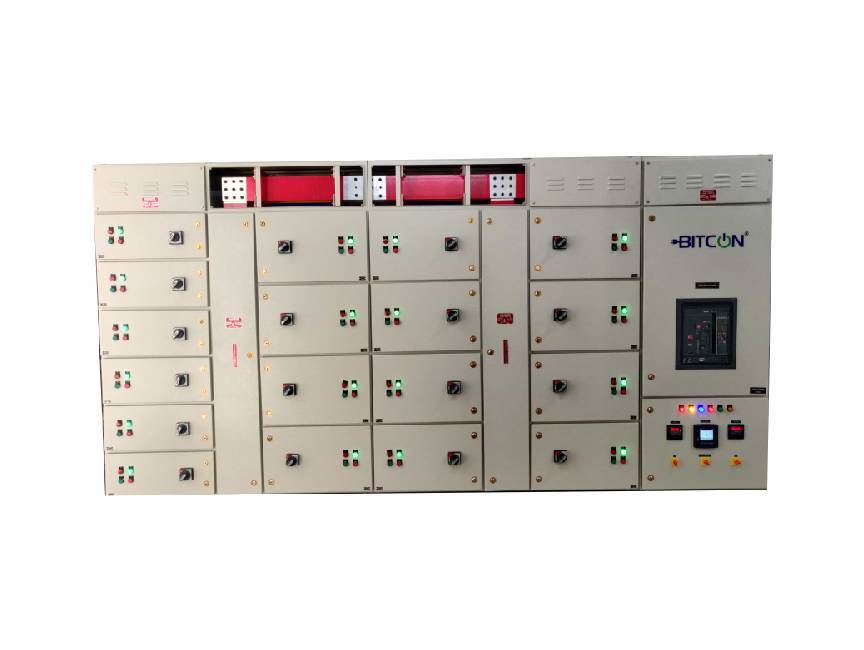

BITCON 'BITmatic' automatic PF Correction (APFC) Panels for low voltage applications are rugged in construction and use best in class PFC components to provide long service life and help maintain the desired PF for even for the most demanding applications.

Key Features

  • heavy duty capacitors
  • specially designed contactors
  • advanced PFC controllers
  • accurate pf compensations
  • higher ROT
  • superior realiability

Product Features

The BITmatic series of Automatic Power Factor Correction (APFC) Panels manufactured by E-Cube Energy come in three variants – normal, de-tuned and tuned. These panels use Heavy Duty and Super Heavy Duty power capacitors with oil impregnation providing the best performance for Indian conditions. The SPFCR-3 series of microprocessor based 3CT sensing PF controllers are used which sense load from all the three phases thereby allowing for more accurate PF control while also providing for superior performance, monitoring and data logging capabilities. All ratings of panels have suitable forced cooling arrangement through the use of requisite number of thermostats and cooling fans. These panels come with a wide range of configuration options for capacitor types, PF controllers, reactors, protection and construction to suite site-specific requirements.

Product Benefits

  • Ensures highest PF on a continuous basis thereby ensuring the maximum possible PF rebates and reduced energy bills
  • Rugged construction with high quality components suitable for a wide range of applications
  • Use of heavy duty / super heavy duty power capacitors impregnated with oil for superior performance and extra-long life
  • Special purpose capacitor duty contactors (AC6b) with dual contacts for inrush suppression
  • Highly intelligent microprocessor based 3 phase P.F. Controller with LCD display as a standard option with Dual P.F. Setting and Master Slave modes
  • Optional pluggable Data Logger, Ethernet, USB, Rs485, GSM modern and capacitor protection module

TECHNICAL SPECIFICATIONS

Design Standardized Sheet Steel Enclosures
Enclosure Finish Epoxy powder coated, in grey (RAL 7032/7305) structure finish. Internal parts are either powder coated or rust proof zinc passivated
Rated Volatge 220 / 415 /440/ 525 / 690 VAC (please ask about other voltages)
Output Rating Refer to Banking Configurations provided bleow.Other output ratings, switching combination or design voltages are available upon request
Capacitors Heavy Duty/ Super Heavy Duty Series Oil Impregnated Power Capacitors used are rated at 440 VAC, 525V, 690V and 880V, 50/60Hz as per network voltage
Contactors Specialized dual contact contactors AC-6b
Reactors Heavy duty Al or Cu wound reactors of high linearity are used for tuned or de-tuned systems.
Incoming / Outgoing MCCB / ACB as Incomer and HRC Fuses/SFU/MCCB for backup protection
Metering Digital Ammeter and Voltmeter with Selector Switch as a standard option.
Power Analyers with RS-485 port as an option.
APFC Controller Microprocessor based 1CT/3CT sensing PF controller with LCD display, in-built multifunction meters with optional RS-485 and data logging capabilities
Ambient Temperature 50℃ max short time
40℃ average in 24 hours
35℃ annual average
Protection class IP 20 /IP 44 / IP 65 / Others
KVAR Ratings 5-50 KVAR in wall mount design
60-2500 KVAR in floor mount design
Operation Auto and Manual operations using A/M Selector Switch and On-Off Push Buttons
Indications R,Y,B phase indications, On/Off for individual banks
Unbalanced Compensation Unbalanced compensation systems can be supplied based on individual site requirements. For further information please contact our sales office

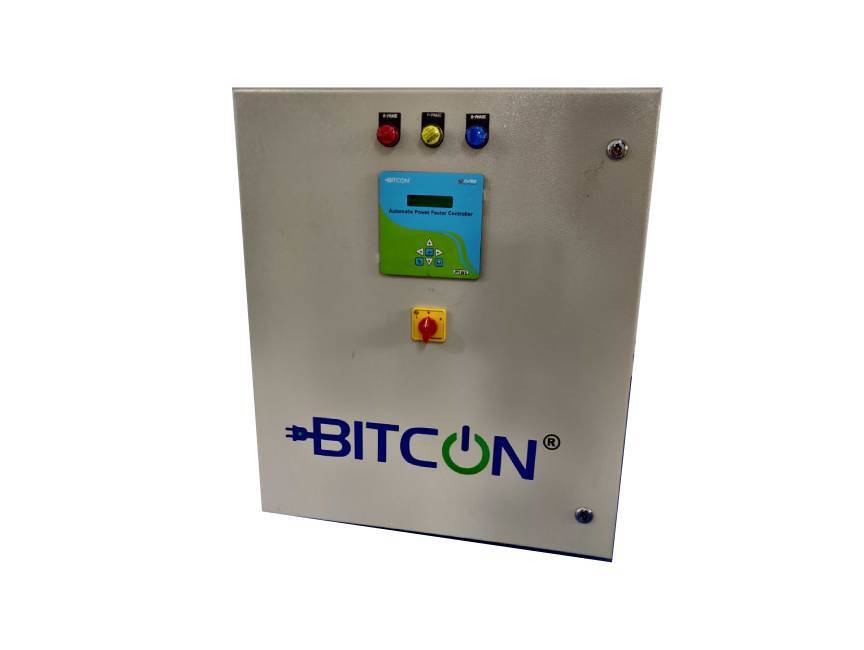

Wall Mounting

Sl.No. kVAr Rating Steps
1 5kVAr 1,2,2
2 10kVAr 1,2,2,5
3 15kVAr 1,2,2,5,5
4 20kVAr 2,3,5,5,5
5 25kVAr 2,3,5,5,10
6 50kVAr 2,3,5,10,15,15

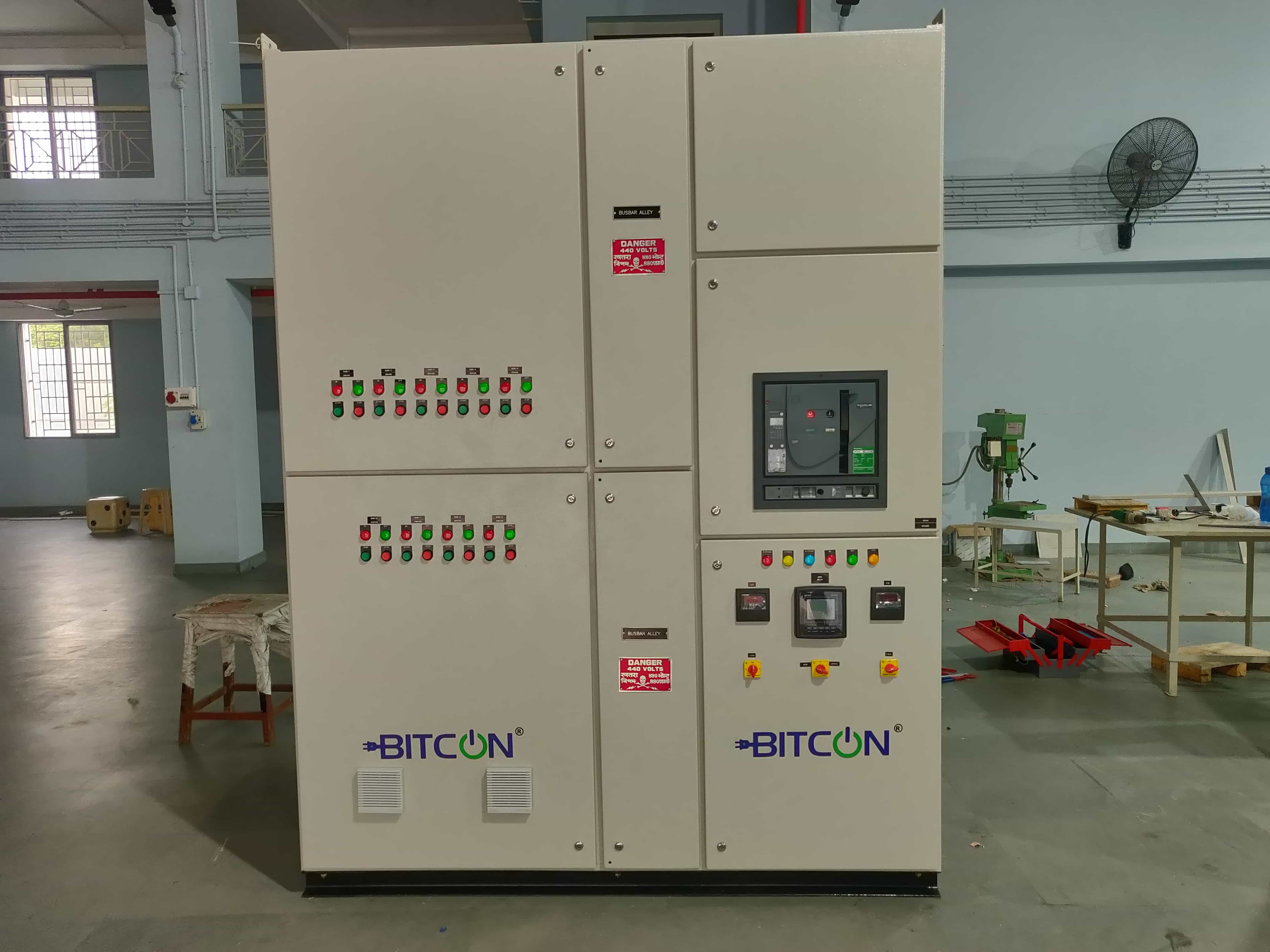

Floor Mounted

Sl.No. kVAr Rating Steps
1 75kVAr 5,10,10,25,25
2 100kVAr 5,10,10,25,25,25
3 150kVAr 5,10,10,25,25,25,50
4 200kVAr 5,10,10,25,25,25,50,50
5 250kVAr 12.5,12.5,25,25,25,50,50,50
6 300kVAr 12.5,12.5,25,25,25,50,50,50,50
7 350kVAr 12.5,12.5,25,25,25,50,50,50,50,50
8 500kVAr 25,25,50x9
9 750kVAr 25,25,50,50 ,100x6
10 1000kVAr 25,25,50x5,100x7

*For ratings above 1000kVAr details are available upon request.
