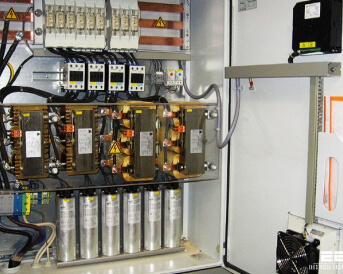

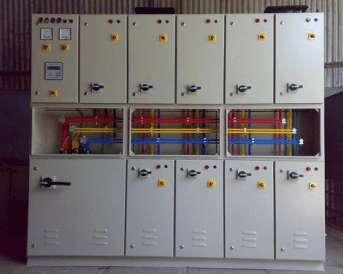

Automatic Power Factor Control or APFC Panels are mainly used for the improvement of Power Factor. Power Factor is the ratio of active power to apparent power and it is a major component in measuring electrical consumption. APFC is an automatic power factor control panel which is used to improve the power factor, whenever required, by switching ON and OFF the required capacitor bank units automatically.

PRODUCT BENEFITS

  • Fast Real Time Transient-Free switching of Capacitor Banks
  • Prevents damage to sensitive electronic equipment in notwork
  • Highly intelligent micro processor based 3 phase P.F. Controller with Dual P.F. Setting and Master Slave modes
  • LCD Controller has inbuilt with Load Manager with front optical port
  • Optional plugable Data Logger, Ethernet, USB, Rs485, GSM modern and capacitor protection modules
  • Saves Energy with P.F Control and Harmonic Filtration

TECHNICAL SPECIFICATIONS

Design Standardized Modular Sheet Steel Enclosures
Enclosure Finish Epoxy powder coated, in grey (RAL 7305) structure finish Internal parts: rust proof zinc passivated/power coated
Rated Volatge 415V-440V/50Hz
(Design available for 380V, 480V, 690V, 750V - 50/60Hz)
Output Rating Refer to the table Other output ratings, switching combination or design voltages are available upon request
Capacitors DUCA POWDER Super Heavy Duty Series used are rated at 525V, 690V and 880V, 50/60Hz as per network voltage
Reactors H-Class
5.6%, 7%,14% or other Tuning/Detuning rating on request
Incoming / Outgoing MCCB / ACB as Incomer and HRC Fuses for backup protection (other combination on request)
Ambient Temperature 50oC max short time
40oC average in 24 hours
35oC annual average
-10oC low limit
Protection class IP 40
Unbalanced Activcomp System For Unbalanced Activcomp System ratings & specifications - Contact our Sales Office
